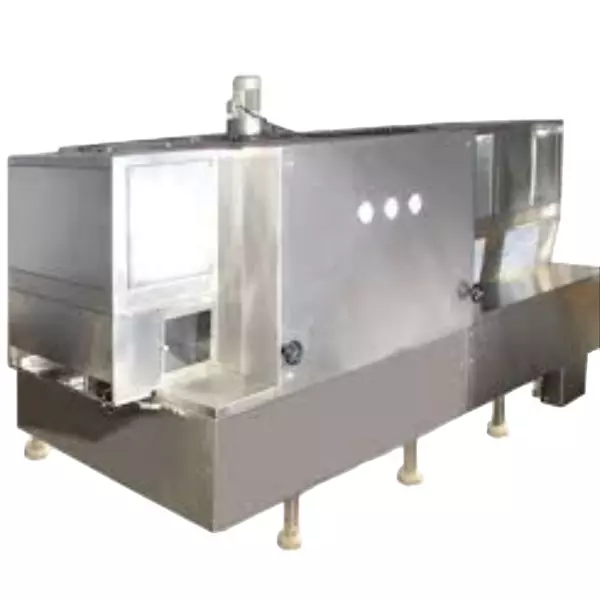

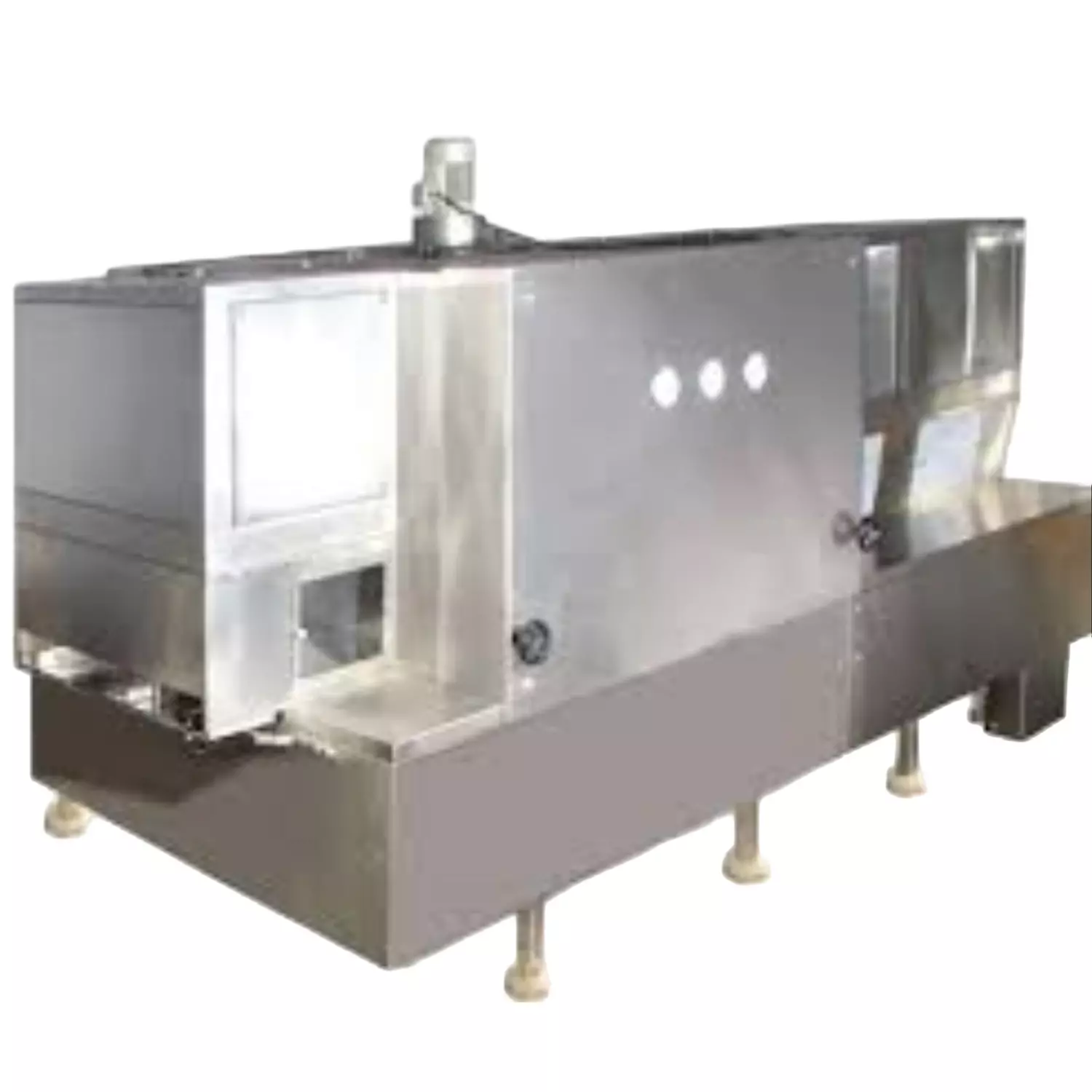

Sterilizing Tunnel

Key Components:

• Conveyor System: Transports items through the tunnel at a controlled speed.
• Sterilizing Chamber: Enclosed space where sterilization takes place.
• Sterilizing Agent Delivery System: Steam, hot air, or chemicals used to sterilize the items.
• Temperature and Pressure Controls: Ensure the sterilization conditions (e.g., temperature, pressure, humidity) are maintained within specified ranges.
• Monitoring and Control Systems: Sensors and control units to monitor sterilization parameters and adjust them as needed.
• Safety Features: Emergency stops, alarms, and safety interlocks to protect operators and prevent accidents.

Machine Operation:

• Loading: Items to be sterilized are loaded onto the conveyor belt at the entrance of the tunnel.
• Sterilization Process: As the items move through the tunnel, they are exposed to the sterilizing agent (e.g., steam or hot air) under controlled conditions.
• Monitoring: Sensors continuously monitor parameters such as temperature and pressure to ensure effective sterilization.
• Cooling: Some tunnels may include a cooling section where the sterilized items are cooled down before unloading.
• Unloading: Sterilized items exit the tunnel at the other end and are ready for further processing or use.

Key Benefits:

• Efficiency: Automates and speeds up the sterilization process compared to manual methods.
• Consistency: Ensures uniform sterilization conditions for all items passing through.
• Quality Assurance: Reliable sterilization that meets regulatory standards.
• Labor Savings: Reduces the need for manual labor in sterilization processes.
• Space Saving: Compact design compared to larger sterilization chambers, suitable for integration into production lines.

Applications:

• Medical Industry: Sterilization of medical devices, instruments, and packaging materials.
• Pharmaceuticals: Sterilization of drug containers, closures, and production equipment
• Food Industry: Sterilization of packaging materials, containers, and food products.
• Cosmetics: Sterilization of packaging and production equipment.
• Research Laboratories: Sterilization of laboratory equipment and materials.

Technical Specification:
